Belt & Gear

Gear ratio 1:2.25
Gear Ratio 1:4
Belt & match spur gear

Belt Gear Ratio 1 : 2,25





Spesifikasi :
Gear ratio 1: 2,25
Gear kecil (metal gear)
Diameter : 1 cm
Jumlah Gigi : 16
Diameter lubang : 5 mm
Tebal : 13 mm
Gear Besar (Plastik)
Diameter : 2.22 cm
Jumlah Gigi : 36
Diameter lubang : 6 mm
Tebal : 7 mm

Kombinasi Shaft, Bearing B1 dan Bushing yang saling sesuai


Kombinasi Bearing B1, Bushing dan shaft yang saling sesuai sehingga cocok untuk aplikasi desain mekanika sesuai dengan aplikasi agan.

Link Bushing 3mm

Link Bearing B1 inner 3mm

Link Shaft 3mm

Metal Bushing inner 3mm length 11mm & 8mm


Metal (logam) bushing dengan diameter dalam 3mm.
Tersedia dengan panjang 11mm dan 8mm
Diameter Luar 5mm

Shaft Diameter 3mm Panjang Rata2x 8cm


Shaft diameter 3mm panjang rata2x 8cm

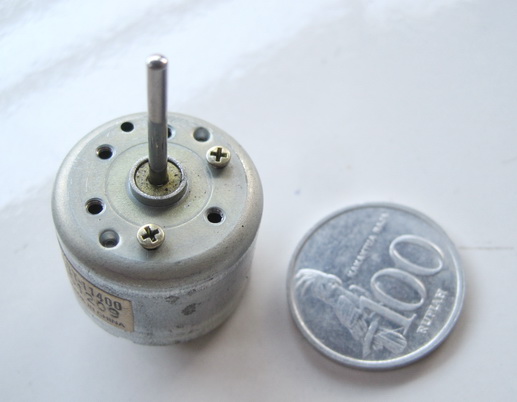

MD-06 Mabuchi DC Motor 1 - 6v 2800rpm




Detail Spesifikasi :
klik datasheet ini


SyMDG-00 Sayama 12v 113rpm / 24v 230rpm





Code : SyMDG-00
Branding : Sayama japan
Tegangan 12-24v
Metal gearbox

Motor Test (Tanpa beban):
Tegangan 12v
Speed : 113 rpm
Arus : 0.09A
Tegangan 24v
Speed:  230rpm
Arus : 0.08A

Dimensi:
Panjangt total (termasuk shaft) : 7.6 cm
Panjang Motor 3 cm
Diameter motor 5.6 cm
Dimensi gearbox 6 x 6 x 3 cm
Diameter shaft 8 mm
Panjang shaft 1.8 cm

TdMDG-01 TOKUSHU DENSO 12v 17rpm / 24v, 30rpm




Code : TdMDG-01
Branding : Tokushu Denso
Tegangan 12-24v
Metal gearbox

Spesifikasi on name plate :

Tegangan : 24v
Gear Ratio: 50 : 1
Arus : 0.8 Amp
Torsi : 21 Kg.cm
Speed : 30 Rpm

Motor Test (Tanpa beban):
Tegangan 12v
Speed : 17.6 rpm
Arus : 0.22A
Tegangan 24v
Speed: 35 rpm
Arus : 0.21A

Dimensi:
Panjangt total (termasuk shaft) : 15 cm
Panjang Motor 9.7 cm
Diameter motor 5.6 cm
Dimensi gearbox 6 x 6 x 3 cm
Diameter shaft 8 mm
Panjang shaft 1.8 cm

sold out

TdMDG-00 TOKUSHU DENSO 12v 18rpm / 24v, 36rpm




Code : TdMDG-00
Branding : Tokushu Denso
Tegangan 12-24v
Metal gearbox

Spesifikasi on name plate :

Tegangan : 24v
Gear Ratio: 100 : 1
Arus : 0.76 Amp
Torsi : 20 Kg.cm
Speed : 30 Rpm

Motor Test (Tanpa beban):
Tegangan 12v
Speed : 18.6 rpm
Arus : 0.24A
Tegangan 24v
Speed: 36 rpm
Arus : 0.29A

Dimensi:
Panjangt total (termasuk shaft) : 13.2 cm
Panjang Motor 8 cm
Diameter motor 5 cm
Dimensi gearbox 6 x 6 x 3 cm
Diameter shaft 8 mm
Panjang shaft 1.8 cm

PtMDG-01 PITTMAN 12v 26rpm / 24v 53rpm







Code : PtMDG-01
Branding : PITTMAN
Tegangan 12-36v

Spesifikasi on name plate :

Tegangan : 36v
Gear Ratio: 65.5 : 1
Motor Test (Tanpa beban):

Tegangan 12v
Speed : 26 rpm
Arus : 0.10A
Tegangan 24v
Speed: 53 rpm
Arus : 0.10A

Dimensi:
Diameter shaft 5mm
Panjang shaft 1.8 cm
Panjang Motor 7.7 cm
Diameter motor 3 cm
Diameter gearbox 3,5 cm

Sold Out

Geared Motor DC PITTMAN

PtMDG-02 PITTMAN 12v 23rpm / 24v 49rpm

PtMDG-00 12v 48rpm / 24v 95rpm


PtMDG-09 Pittman 12v 78rpm / 24v 152rpm

PtMDG-08 Pittman 12v 25rpm / 15v 32rpm

PtMDG-01 PITTMAN 12v 26rpm / 24v 53rpm




PtMDG-08 Pittman 12v 25rpm / 15v 32rpm



Code : PtMDG-08
Spesifikasi :
Brand : PITTMAN
Tegangan : 15.1 v
Gear Ratio : 2.8.4 : 1


Motor test :
Tegangan 12v
Speed 25 Rpm.
Tegangan 15v
Speed 32rpm

Dimensi :
Panjang motor total :  12.7 cm
Dia motor : 4 cm
Dia Gearbox : 5.1 cm
Panjang Poros shaft : 3 cm
Dia Poros shaft : 6 mm

PtMDG-09 Pittman 12v 78rpm / 24v 152rpm




Order Code : PtMDG-09
Spesifikasi on name plate:
Branding : PITTMAN USA
Tegangan : 24v
Gear ratio : 38.3 : 1

Motor test (tanpa beban):
Tegangan 12v
Speed 78 Rpm
Arus : 0.15 Amp
Tegangan 24v
Speed 152 Rpm
Arus : 0.20 Amp

Dimensi :
Panjang total 12.7 cm
Diameter motor 4 cm
Diameter gearbox 5.1 cm
Panjang as : 1.8 cm
Diameter as : 6mm
Sold Out

TsMDG-03 Tsukasa Electric 12v 33rpm / 24v 65rpm





Order Code : TsMDG-03

Spesifikasi :
Branding : Tsukasa Electric.co.LTD (japan)
Tegangan : 12-24v

Motor test (tanpa beban):
Tegangan 12v
Speed 33 Rpm
Arus : 0.24 Amp
Tegangan 24v
Speed 65 Rpm
Arus : 0.29 Amp

Dimensi :
Panjang total 9.9 cm
Diameter motor 3.6 cm
Diameter gearbox 4.2 cm
Panjang as : 1.5 cm
Diameter as : 6mm
Available 2 pcs


TsMDG-04 Tsukasa Electric 12v 430rpm / 24v 843rpm



Order Code : TsMDG-04
Spesifikasi :
Branding : Tsukasa Electric.co.LTD (japan)
Tegangan : 12-24v

Motor test (tanpa beban):
Tegangan 12v
Speed 430 Rpm
Arus : 0.15 Amp
Tegangan 24v
Speed 843 Rpm
Arus : 0.20 Amp

Dimensi :
Panjang total 7 cm
Diameter motor 4 cm
Diameter gearbox 4.3 cm
Panjang as : 1.5 cm
Diameter as : 6mm
Available 2 pcs

KHG-04 20-195 Matsushita 12~20v (12v --> 126rpm)



Order Code : KHG-04 20-195
Spesifikasi :
Branding : Toshiba  Japan
Tegangan : 12-20v
Metal gearbox

Motor test (tanpa beban):
Tegangan 12v
Speed 120 Rpm
Arus 0.4 Amp
Tegangan 20v
Speed 197 Rpm
Arus 0.5 Amp

Dimensi :
Panjang Total 18 cm
Panjang motor 10 cm
Diameter motor  7 cm
Ukuran gearbox 8x8x4 cm
Panjang shaft  4 cm, Diameter 1 cm
Berat : 1.63 Kg
Stock : 1 pcs

KHG-04 19-194 Matsushita 12~19v (12v--> 148rpm)


Order Code : KHG-04 19-194
Spesifikasi :
Branding : Matsushita Japan
Tegangan : 12-19v

Motor test (tanpa beban):
Tegangan 12v
Speed 148 Rpm
Arus 0.4 Amp
Tegangan 19v
Speed 230 Rpm
Arus 0.7 Amp

Dimensi :
Panjang Total 17.5 cm
Panjang motor 10 cm
Diameter motor :6.8 cm
Diameter gearbox  8 cm
Panjang shaft  4.7 cm, Diameter 1 cm
Berat : 1.55 Kg
Stock : 1 pcs

KHG-04 20-1635 matsushita geared dc motor 12~20v. (12v --> 305rpm)





Order Code : KHG-04 20-1635
Spesifikasi :
Branding : Matsushita Japan
Tegangan : 12-20v

Motor test (tanpa beban):
Tegangan 12v
Speed 305 Rpm
Arus 0.47 Amp
Tegangan 20v
Speed 512 Rpm
Arus 0.55 Amp

Dimensi :
Panjang Total 17.5 cm
Panjang motor 10 cm
Diameter motor :6.8 cm
Dimensi gearbox 12 x 10.6 x 4.1 cm
Panjang shaft A 2.9 cm, Diameter 8mm
Panjang shaft B 1.6 cm, Diameter 8mm

Berat 1.54 Kg
Stok : 2 pcs
