KSM-02 Hitachi DC motor High Speed
















Code : KSM-02
Spesifikasi (On nameplate):
Brand : Hitachi Motor dc
Tegangan up to 30v
Arus up to 2 Amp
Speed : 3100 / 2750 Rpm
Encoder : 200 P/R

Motor test (no load):
Tegangan 12v
Speed 1230 Rpm
Arus 0.15 Amp
Tegangan 25.5v
Speed 2619 Rpm
Arus 0.19 Amp



Dimensi :
Panjang total 15.1 cm
Panjang mesin motor 10 cm
Diameter mesin motor 6.1 cm
Panjang encoder 2.4 cm
Diameter encoder 5.4 cm
Panjang shaft / as : 3.2 cm
Diameter : 1 cm
Built in additional shaft diameter 2.4cm (removable)
Berat 0.7kg

KR-06 Combinasi Worm Spur Gearbox DC motor


Code : KR-06
Spesifikasi (name plate) :
Brand : Hosiden
Tegangan : 12~24v
Speed : 13.7 Rpm

Motor test (tanpa beban):
Tegangan 12v:
Speed 6.8 Rpm (End gear)
Arus  0.01 Amp
Tegangan 24v :
Speed  13.2 Rpm (End gear)
Arus   0.03  Amp

Dimensi:
Panjang Total 7.5cm
Panjang motor 2.5cm
Panjang shaft  end gear 2.7cm
Diameter motor 3.2cm
Diameter shaft 6 mm
End shaft built in gear diameter 1.8cm

MD9

MD9

Spesifikasi :

Buatan : Morkle-Korff Industries
Tegangan : 30 v
Rpm : < 20 rpm
Type : Internal GearBox
Kondisi barang : Bekas
Harga : Rp 180.000

KR-05 Motor DC with Encoder + sensor



Code : KR-05
Spesifikasi  :
Brand : CANON
Built in rotary encoder  20 lubang
Built in sensor optocoupler

Motor test (tanpa beban)
Tegangan 12v:
Speed 1516 Rpm (motor shaft)
Speed  759  Rpm (End gear)
Arus   0.13  Amp
Tegangan 24v:
Speed       Rpm (motor shaft)
Speed       Rpm (End gear)
Arus         Amp

Dimensi:
Panjang Total 9.9cm
Panjang motor 7.2 cm
Diameter motor 3.75cm
Diameter shaft motor  4 mm
Diameter Rotary Encoder  4.2cm
Diameter end gear  4.1 cm
Diameter shaft  gear  1 cm







KR-04 Motor DC with Feedback Rotary Encoder + Solenoid Break




Code : KR-04
Spesifikasi (name plate) :
Brand : NISCA Japan
Built in rotary encoder  55 lubang
Built in sensor optocoupler
Built in solenoid break system
Built in Ext belt gearbox

Motor test (tanpa beban):
Tegangan 12v:
Speed  1618 Rpm (motor shaft)
Speed 732 Rpm (End gear)
Arus  0.30 Amp
Motor test (tanpa beban):
Tegangan 24v:
Speed  3177 Rpm (motor shaft)
Speed 1390 Rpm (End gear)
Arus  0.33 Amp

Solenoid Break spesifikasi :
Tegangan DC : 12v
Daya 3.3 watt

Dimensi:
Panjang Total 12.5cm
Panjang motor 7cm
Diameter motor 5.3cm
Diameter shaft motor  8mm
Diameter Rotary Encoder  6.3mm
Diameter end gear  3.8 cm
Diameter shaft  gear  1.5 cm

KR-03 External Worm Gearbox Motor DC






Code : KR-03
Spesifikasi (name plate) :
Brand : Hosiden
Tegangan : 12~24v
Arus 0.8A

Motor test (tanpa beban):
Tegangan 12v:
Speed 64 Rpm (End gear)
Arus 0.06 Amp
Tegangan 24v :
Speed  124 Rpm (End gear)
Arus 0.10 Amp

Dimensi:
Panjang Total 8.5cm
Panjang shaft  end gear 10cm
Panjang motor 5.5cm
Diameter motor 3.5cm
Diameter shaft 6mm
Torque : 8 kg.cm

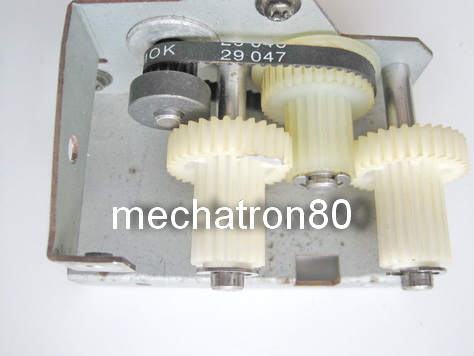

KR-02 External Geared Motor Dc





Code : KR-02
Spesifikasi :
Brand : NISCA Japan
Tegangan : 12~24v

Motor test (tanpa beban) :
Tegangan 12v:
Speed 398 Rpm (End gear)
Speed 1750 Rpm (motor shaft)
Arus 0.10 Amp
Tegangan 24v :
Speed  844 Rpm (End gear)
Speed 3600 Rpm (motor shaft)
Arus 0.12 Amp

Dimensi:
Panjang Total 11cm
Lebar 7.5cm
Panjang motor 5.2cm
Diameter motor 4cm

Catatan:
Shaft tidak berputar, hanya gigi plastic yang berputar

TsMDG-02 12v 100rpm / 24v 203rpm


TsMDG-02

Order Code : MDG-04D
Spesifikasi :
Branding : Tsukasa Electric.co.LTD (japan)
Tegangan : 12-24v

Motor test (Tanpa beban):
Tegangan 12v
Speed : 100 Rpm
Arus : 0.15 Amp
Tegangan 24v
Speed : 203 Rpm
Arus : 0.16 Amp

Dimensi :
Panjang total termasuk shaft : 11.2 cm
Panjang motor x diameter : 5.3 cm x 3.6 cm
Dimensi gearbox : 6 x 6 x 3.3 cm
Panjang shaft : 2 cm
Diameter shaft : 6 mm

Stok : 1 pcs

PtMDG-00 PITTMAN 12v 48rpm / 24v 95rpm
















Code : PtMDG-00
Branding : PITTMAN
Tegangan 12-24v

Spesifikasi on name plate :

Tegangan : 24v
Gear Ratio: 96:1

Motor Test (Tanpa beban):
Tegangan 12v
Speed : 48 rpm
Arus : 0.14A
Tegangan 24v
Speed: 95 rpm
Arus : 0.18A

Dimensi:
Diameter shaft 4mm
Panjang shaft 3 cm
Panjang body 11,5 cm
Diameter gearbox 3,4 cm


KR-01 Worm geabox Motor DC

 front view
Rear view

Code : KR-01
Spesifikasi :
Tegangan : 12~24v
Built in rotary encoder 24 lubang
Built in sensor optocoupler
Kombinasi gearbox belt + worm gear

Motor test (tanpa beban)
Tegangan 12v :
Speed 10 Rpm (Gigi besar)
Speed 837 Rpm (worm shaft)
Arus 0.1 Amp
Tegangan 24v :

Dimensi:
Panjang Total 15cm
Panjang motor 5.5cm
Diameter motor 3.3cm
Diameter Gigi besar 7cm ( shaft 8mm)

Order disini
